Bill of Material

The bill of material examples demonstrates various computates with a matrix with non-uniform units of measurement. The products in a bill of material matrix can have different units of measurement.

The code for the example is in file bom.pacioli. The bill of material matrix from the example is

Product, Product                     Value
------------------------------------------
Butter, Pastry                     360.000 g/kg
Butter, ApplePie                   115.000 g/pie
Flour, Pastry                      550.000 g/kg
Pastry, ApplePie                     0.400 kg/pie
Apples, ApplePie                   750.000 g/pie
Sugar, ApplePie                    225.000 g/pie
ApplePie, PieceOfPie                 0.125 pie/pc
CrateOfApples, Apples                0.000 crt/g

An example of the output is the product cost. The units are derived automatically.

Product          Value
----------------------
Pastry            1.16 $/kg
Apples            5.00 $/kg
ApplePie          4.56 $/pie
PieceOfPie        0.57 $/pc

Visualization

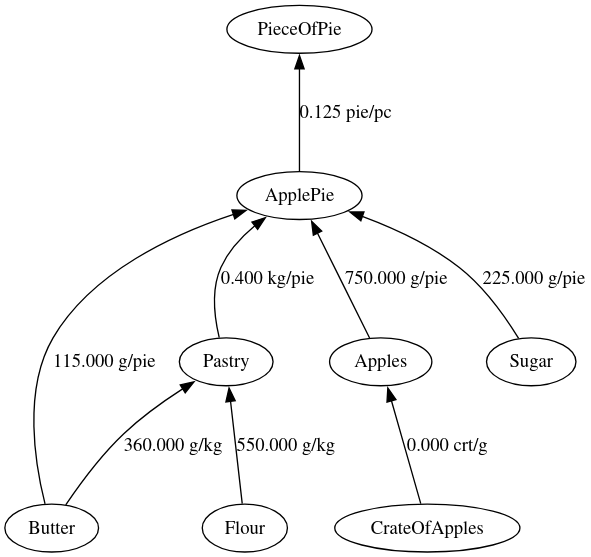

Bill of material

The bill of material and its closure are visualized as directed graphs. The hmtl page for the visualization is in bom.html

The dot images are generated with viz.js, a collection of packages for working with graphviz in JavaScript.
